Scientists Develop New Way to Control Exotic Light Waves in 2D Materials
A group of researchers has made a breakthrough in controlling Dirac plasmon polaritons (DPPs) within two-dimensional topological insulator metamaterials, a discovery that could significantly impact the future of terahertz (THz) photonics. This advancement addresses one of the long-standing challenges in manipulating light waves at extremely small scales and within the THz frequency range.
What Are Dirac Plasmon Polaritons (DPPs)?
To understand the importance of this research, we first need to know what DPPs are. DPPs are unusual waves formed by the coupling of light with the collective oscillations of electrons in Dirac materials such as graphene or topological insulators.
What makes them extraordinary is their ability to compress light into spaces up to one hundred times smaller than its wavelength. This means they can push electromagnetic waves far beyond the limits of conventional optics, allowing light to be manipulated at the nanoscale with unprecedented precision.
In Dirac materials, electrons behave as if they are massless, moving at high speeds without conventional resistance. This unique property gives DPPs remarkable flexibility and adaptability to environmental changes, making them highly attractive for future nano-optoelectronic devices.
Why the Terahertz Gap Matters
The terahertz frequency range (THz), sitting between microwaves and infrared light, is often called the “THz gap”. Despite its potential, it remains one of the least explored regions of the electromagnetic spectrum.
This range could be transformative for technologies such as:
- Security scanning systems
- High-speed wireless communication
- Advanced medical diagnostics
- Next-generation imaging technologies
The problem is that controlling light at THz frequencies has been extremely difficult. The signals tend to lose energy quickly, and the momentum mismatch makes them hard to manage. This is where DPPs come in, as they can confine and guide THz waves efficiently at the nanoscale.
The Breakthrough: Engineering Metamaterials
The research team led by Prof. Miriam Serena Vitiello has demonstrated a new method for tuning DPPs in 2D materials by using topological insulator metamaterials made from epitaxial Bi₂Se₃.
Here’s how they achieved it:
- They fabricated laterally coupled nanostructures called metaelements.
- By carefully adjusting the spacing between these metaelements, they could tune the wavevector of DPPs through geometric control.
- This method allows precise manipulation of DPP behavior without relying on external factors like gating or pumping.

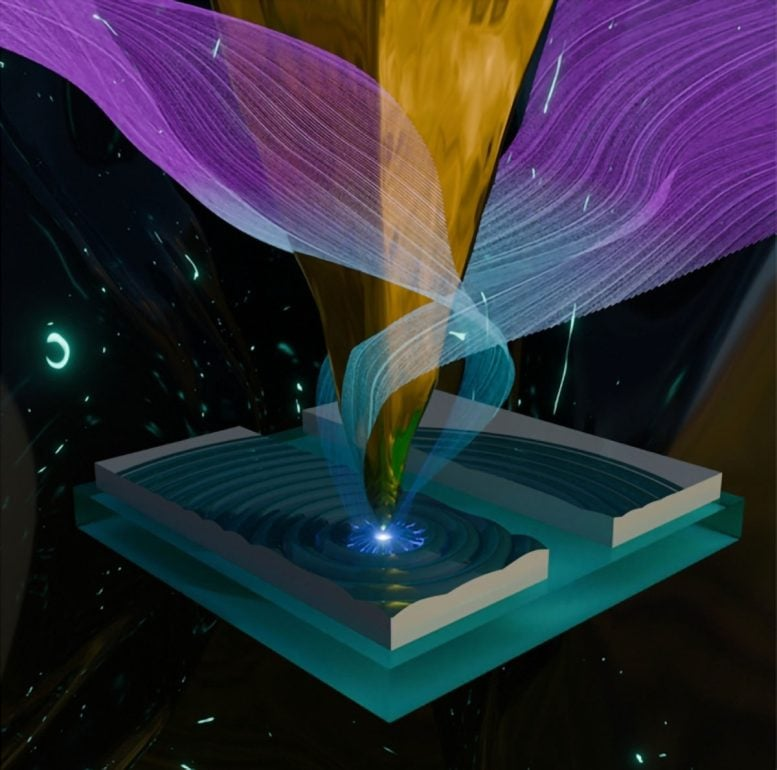

Using advanced phase-sensitive near-field microscopy, the researchers were able to successfully launch and image DPP propagation in these nanostructures.
Results of the Study
The team’s experiments revealed some exciting outcomes:
- By changing the spacing between the coupled metaelements, they could increase the polariton wavevector by up to 20%.
- They also managed to extend the attenuation length by more than 50%, which means the DPPs could travel longer distances with less energy loss.
This is a major step forward because one of the biggest hurdles in THz plasmonics is the rapid signal loss. By overcoming this, the path opens up for low-loss, tunable, and highly efficient THz photonic devices.
The researchers believe these findings could pave the way for applications in THz nanophotonics, non-linear optics, energy-efficient photovoltaics, and even quantum technologies.
Why This Matters for Future Technology
If you’ve ever wondered why THz technologies haven’t taken off as much as visible-light or microwave technologies, it’s largely because of the difficulty in controlling and guiding waves in this range.
Now, with the ability to design and tune DPPs at will, we could see:
- Compact THz waveguides for on-chip circuits
- Highly sensitive detectors for security and medicine
- Reconfigurable optical circuits for ultrafast computing
- Better energy conversion systems in photovoltaics
Essentially, this research could help bridge the THz gap and bring us closer to technologies that have so far been theoretical or experimental at best.
Understanding Topological Insulators
Since this research relies heavily on topological insulators (TIs), let’s quickly explore what they are.
A topological insulator is a material that behaves like an insulator in its bulk but has highly conductive surface states. These surface states are unique because they are protected by the material’s topology (mathematical properties of its band structure).
Some key features:
- Electrons on the surface behave like massless Dirac particles.
- They move with minimal scattering, leading to high mobility.
- Their electronic properties are robust against defects or impurities.
When these properties are combined with plasmonics, they create exotic light-matter interactions, such as DPPs, that can be finely tuned in metamaterial structures.
How Metamaterials Fit In
Metamaterials are artificial structures designed to control electromagnetic waves in ways not possible with natural materials. They are made up of repeating units (like the metaelements in this study) that can be engineered to produce specific effects.
In this case, the metaelements are designed so that their geometry dictates the behavior of the DPPs. This design-driven approach means researchers can “program” the plasmonic response of the material before fabrication, giving a powerful tool for creating new devices.
Challenges That Remain
Even though this is a promising development, there are still hurdles to overcome before it translates into real-world applications:
- Material Quality
- Fabricating high-quality epitaxial Bi₂Se₃ on a large scale is difficult. Any defects could introduce losses.
- Scalability
- While the experiments show proof of concept, scaling these nanostructures for mass production is not trivial.
- Dynamic Tuning
- The current method is geometry-based, meaning it’s set during fabrication. Adding external tuning mechanisms would allow even greater flexibility.
- Coupling to External Systems
- Efficiently coupling free-space THz waves into DPP modes still remains a challenge.
Despite these issues, the progress is undeniable. The ability to increase wavevector control and reduce losses could be a turning point in THz nanophotonics.
Broader Applications of THz Technology
While this study is specific to DPPs and metamaterials, it connects to the larger field of THz technologies. Potential areas of impact include:
- Medical Imaging: THz waves can see through clothing and skin without the harmful ionizing effects of X-rays.
- Wireless Communication: THz bands could enable data transfer speeds far beyond current 5G and 6G technologies.
- Spectroscopy: THz spectroscopy can identify chemical compounds with high precision, useful in both industry and healthcare.
- Security: THz scanners can detect concealed weapons or substances more safely than conventional methods.
This makes the ability to guide and tune THz waves particularly exciting.
Final Thoughts
This discovery is a significant step toward controlling light at the nanoscale in one of the most elusive regions of the electromagnetic spectrum. By showing that geometric design of metamaterials can fine-tune DPPs, the researchers have opened a new path for future THz devices that could revolutionize communication, sensing, and energy applications.
For now, it’s an exciting development in the lab, but it may not be too long before we see these ideas moving into practical technologies.
